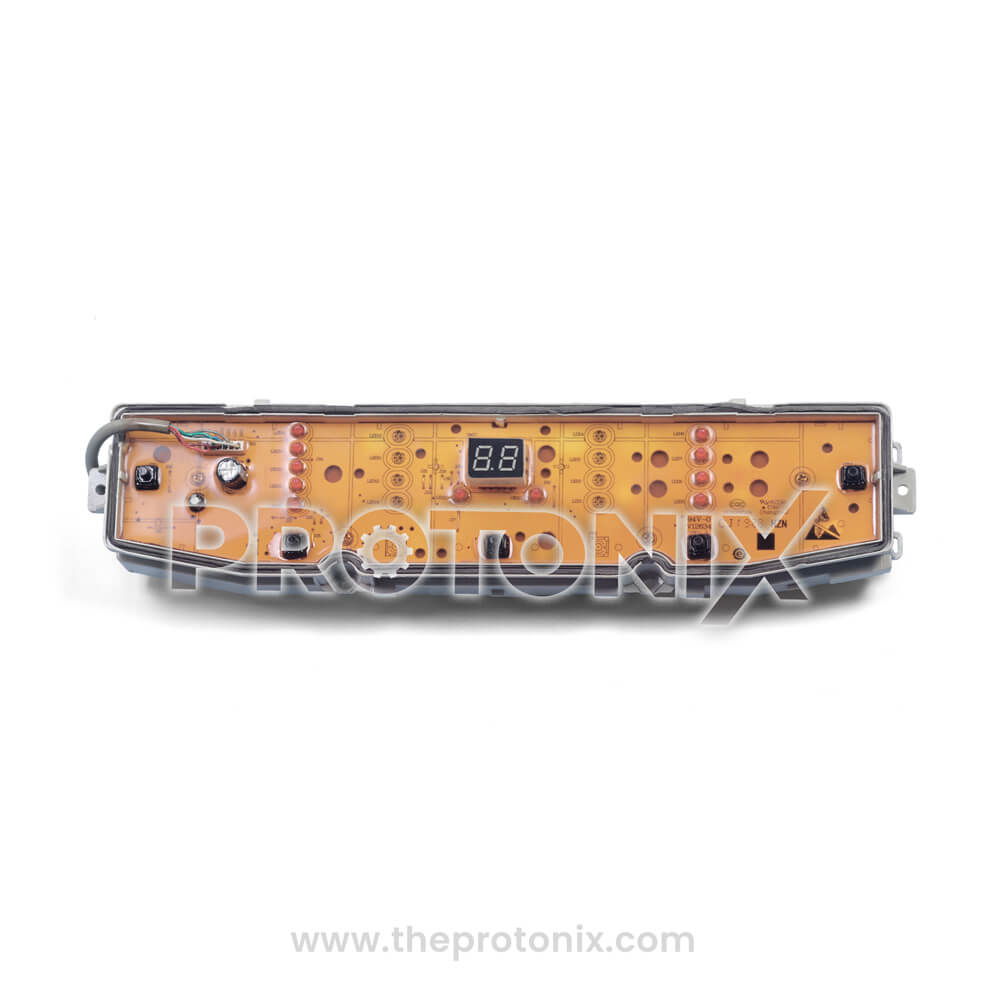

Front view of Haier top-load 5-button PCB (5-Jack) display section with digital screen and control buttons

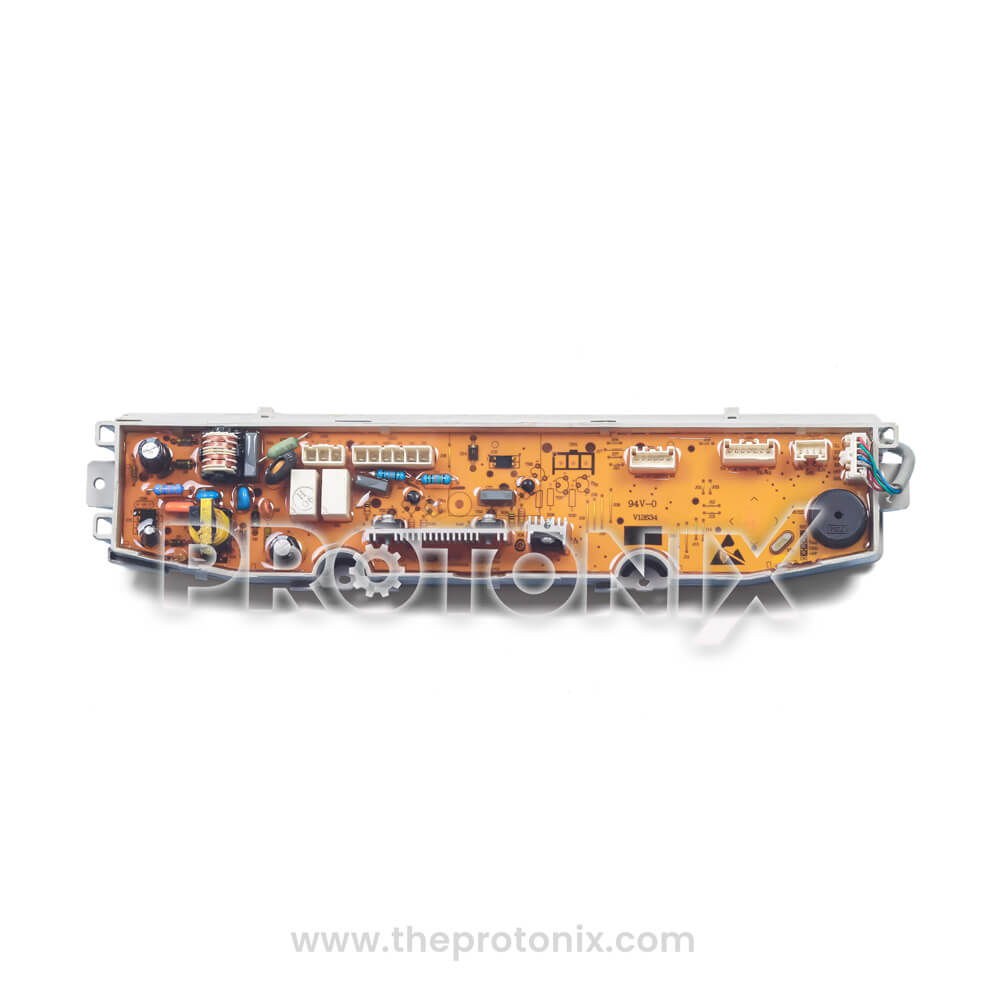

Back profile of Haier top-load 5-button PCB (5-Jack) showing transformer and connector ports

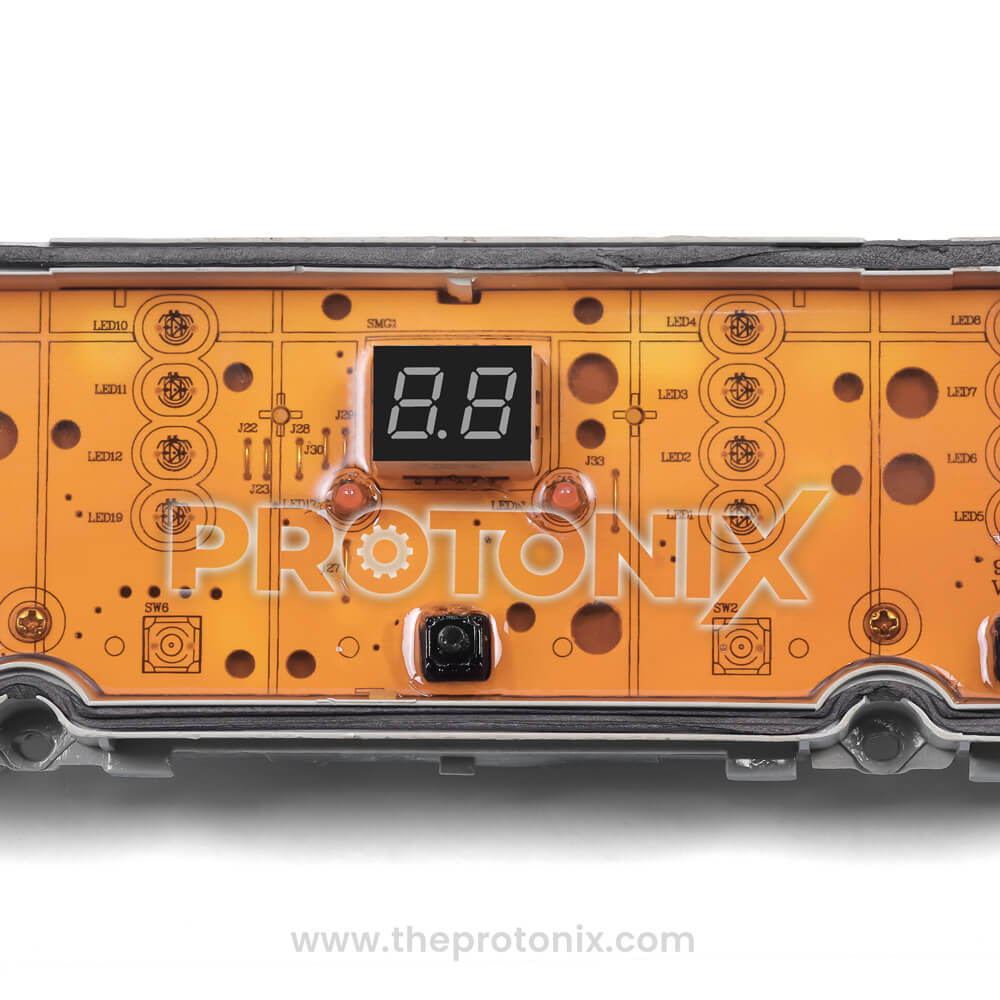

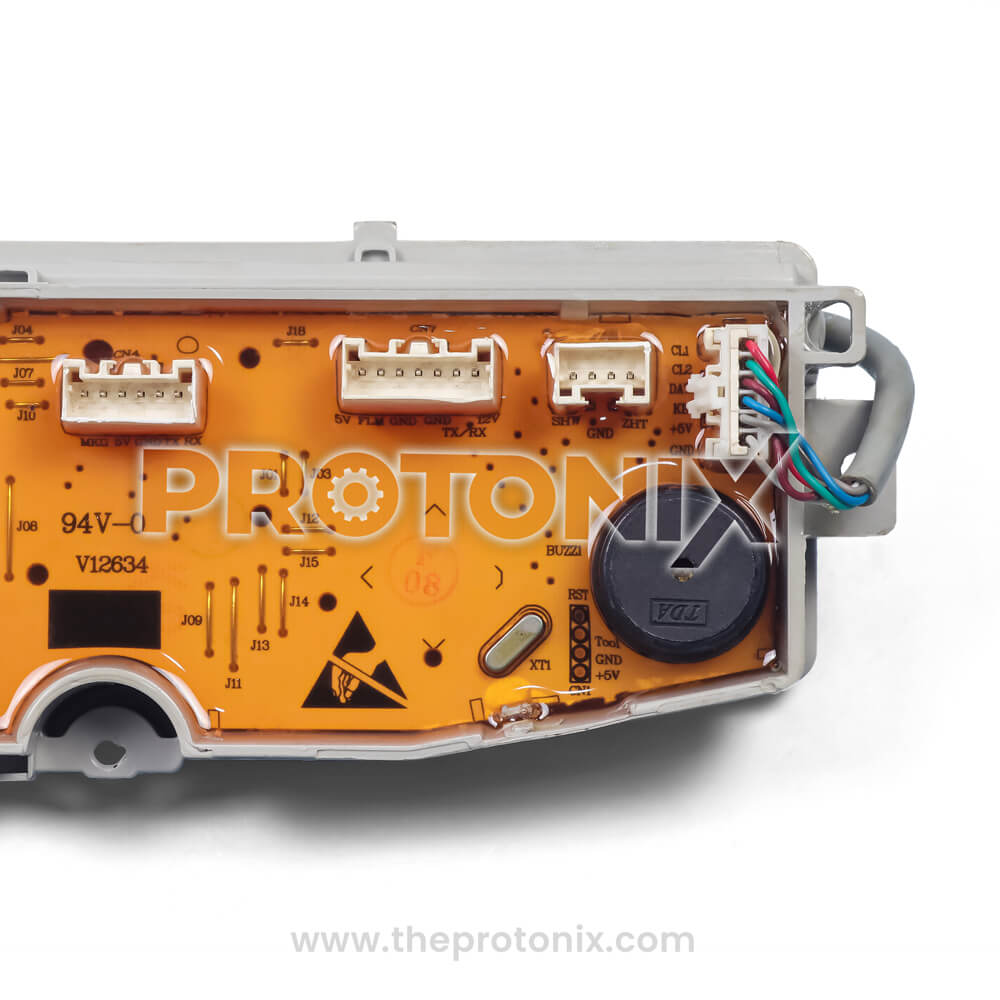

Close-up of Haier top-load 5-button PCB (5-Jack) with printed track layout
Haier top-load 5-button PCB (5-Jack) made with strong PCB board and electronic components

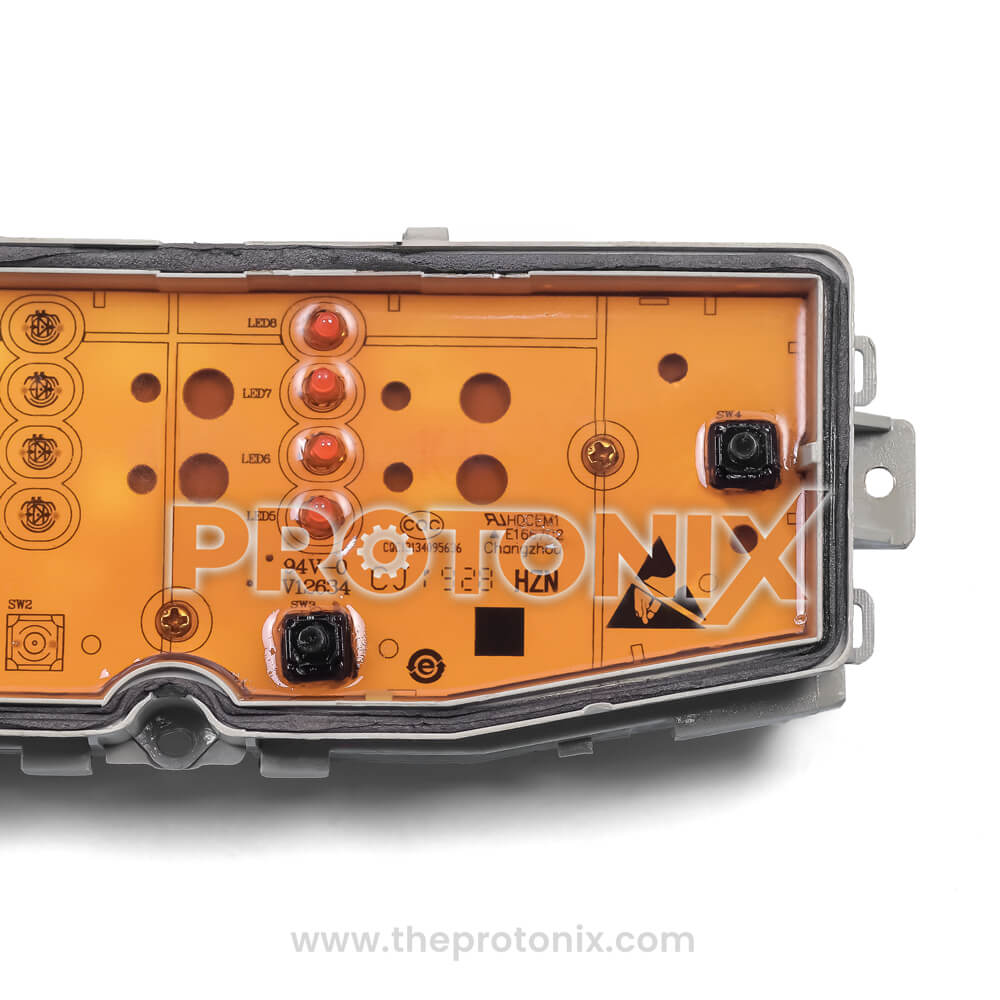

Haier top-load 5-button PCB (5-Jack) strong build with high quality buttons and yellow board

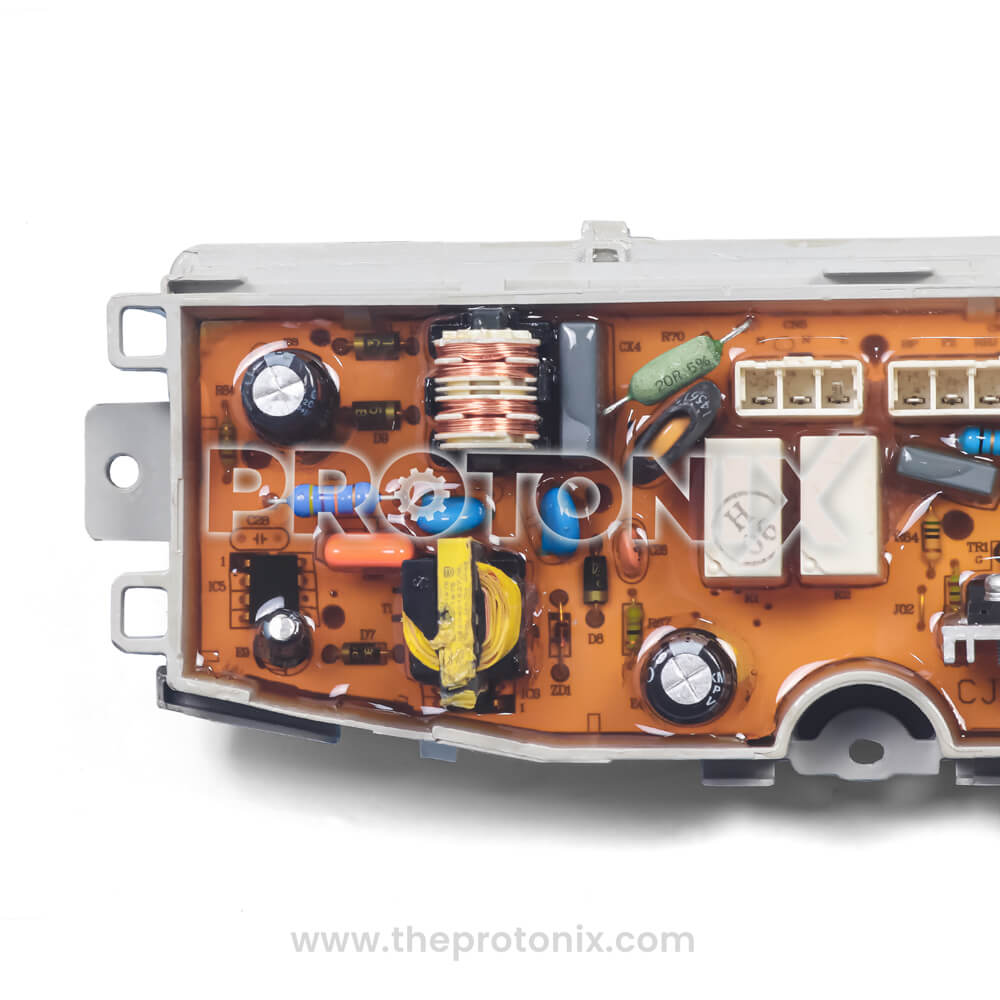

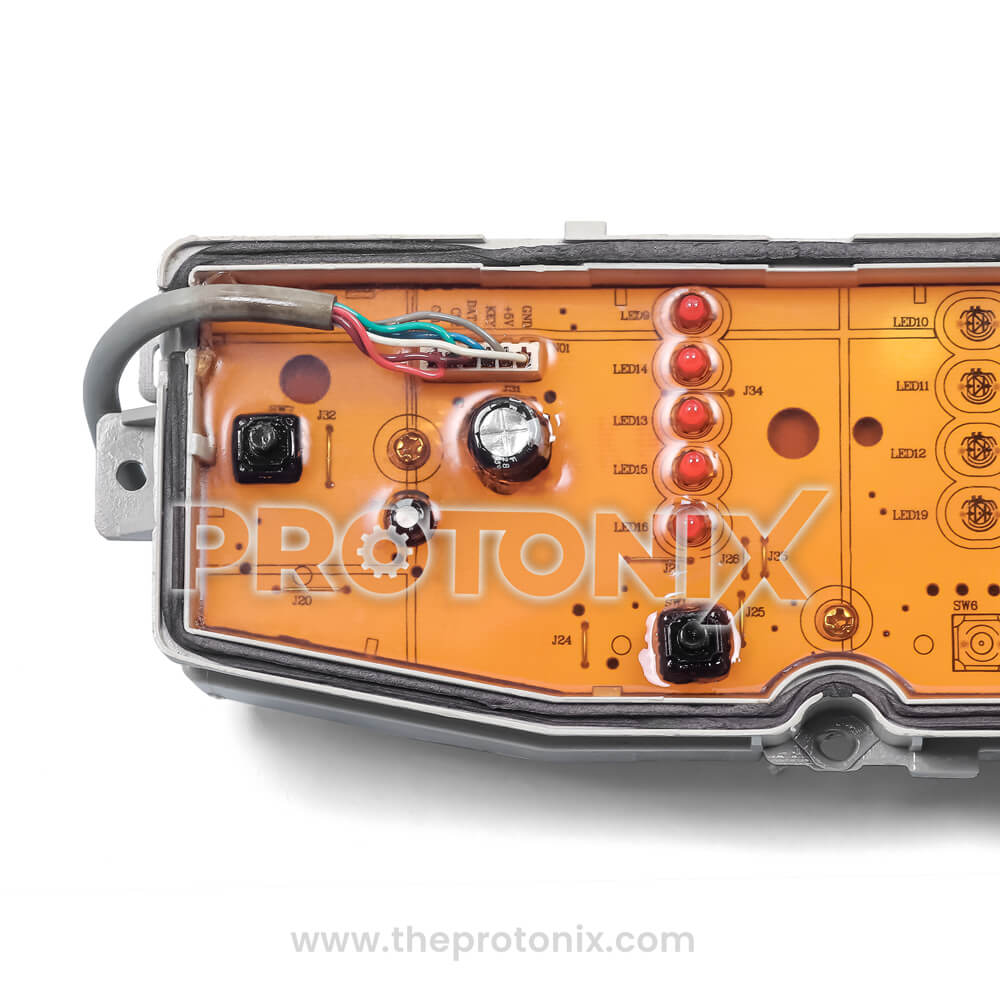

Half close-up of Haier top-load 5-button PCB (5-Jack) with capacitor and fuse section

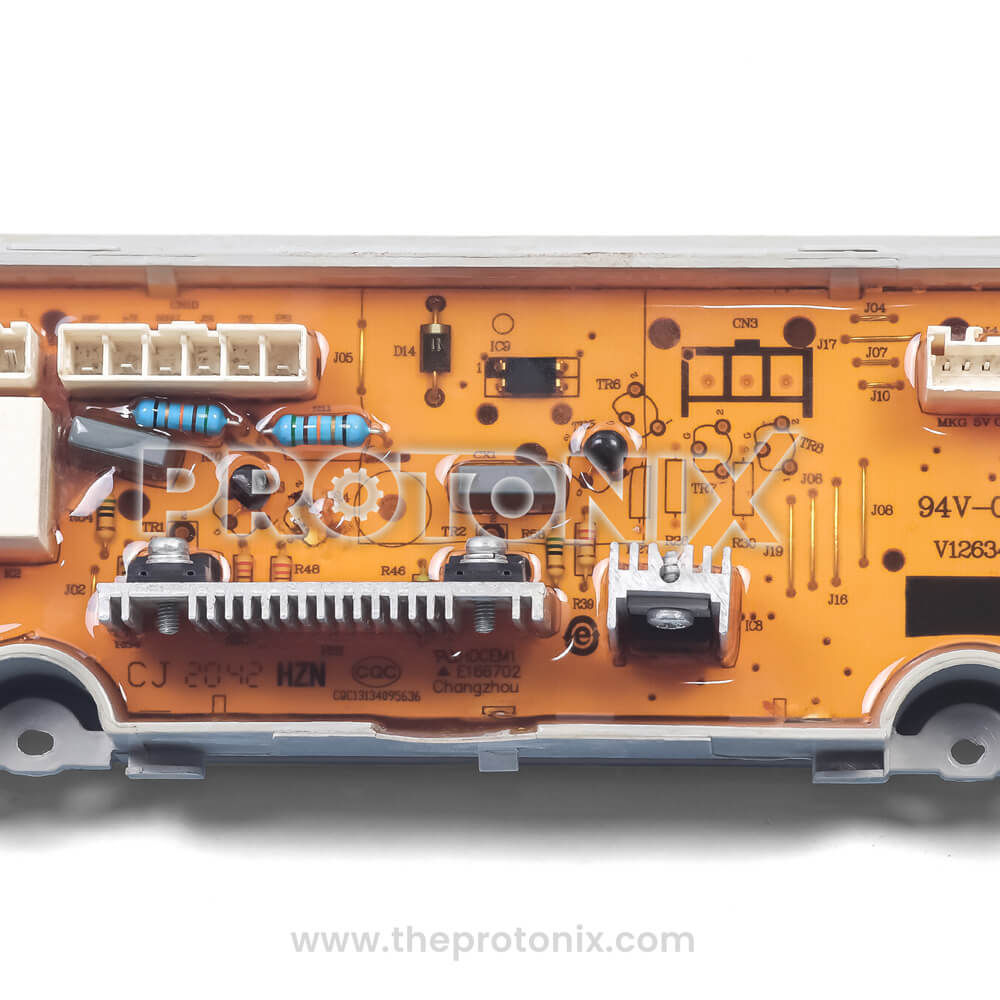

Center view of Haier top-load 5-button PCB (5-Jack) showing heat sink and circuit parts
Haier top-load 5-button PCB (5-Jack) made with strong yellow PCB board and colored wires

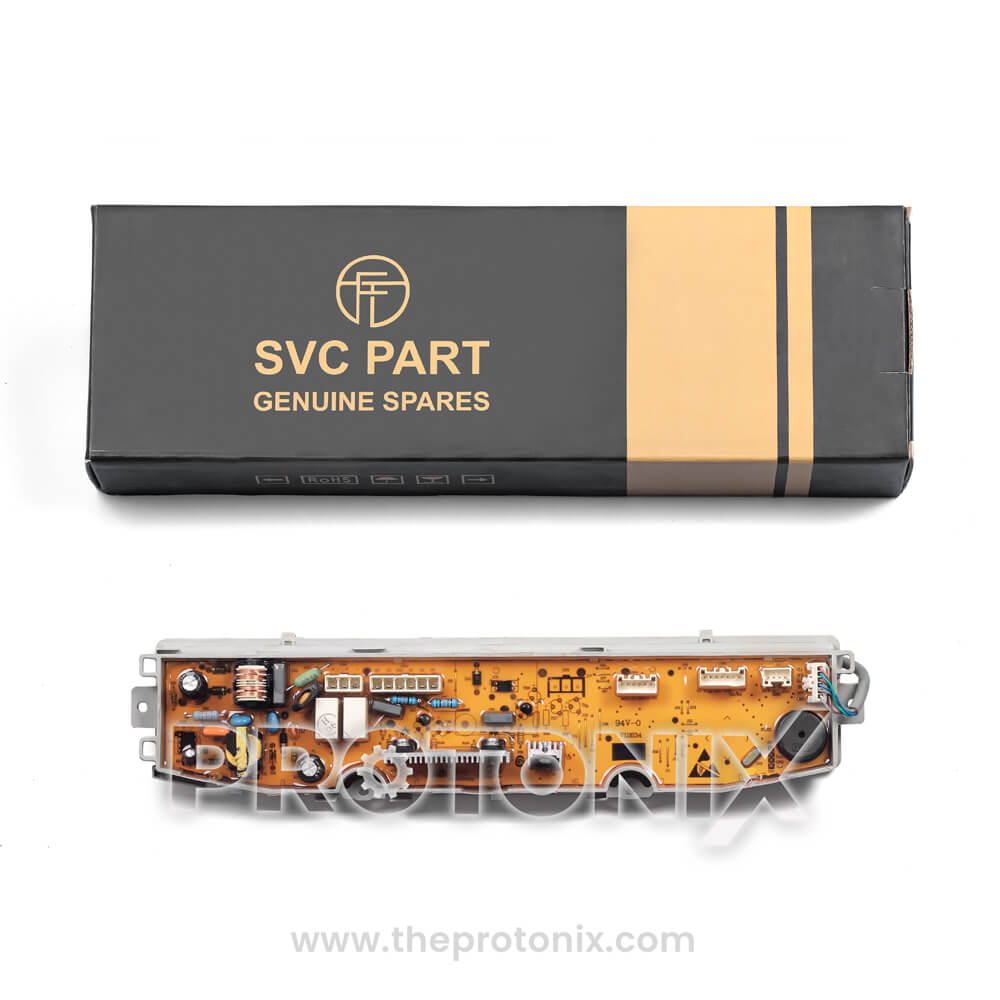

Haier top-load 5-button PCB (5-Jack) with protective box for safe delivery and handling

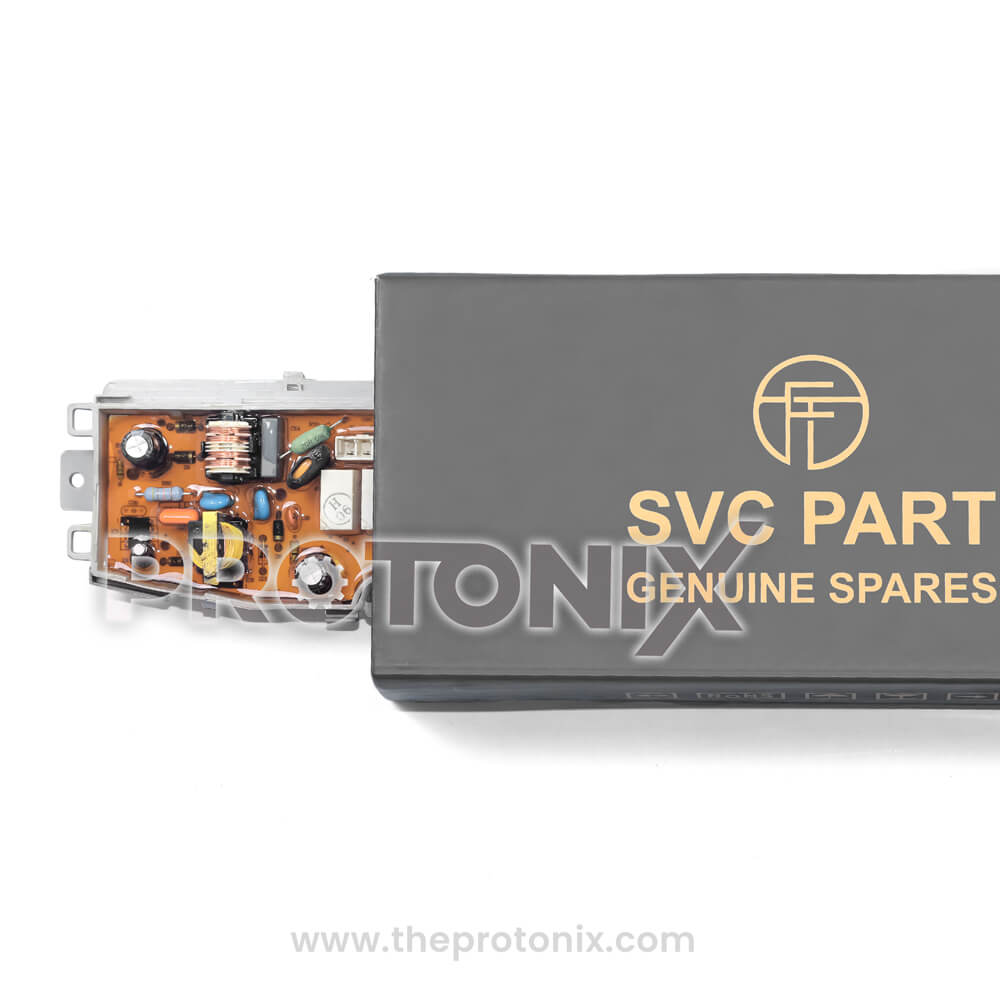

Haier top-load 5-button PCB (5-Jack) securely packed inside box for safe storage

Haier Top-Load 5-Button PCB (5-Jack)

SKU: PRX00547
Availability: In Stock
₹ 2,640
₹ 2,640

M.R.P. Inclusive of all taxes

Features & Compatibility​:

Compatible Brands: Haier
Warranty Period: No Warranty
Origin: OEM
Product Type: PCBs
Appliance Type: Top Load Washing Machine
COD Available On Orders Over ₹500
Free Delivery Over ₹3000 Orders
Product Video Before Item Dispatch*
100% Genuine
Secure Checkout
#1 Customer Support
Fastest Delivery
Premium Quality

Have Questions or Need Help?

We are trusted dealer of home appliances and electronic spare parts, offering only premium-quality, genuine products. Your satisfaction is our priority — thank you for choosing us!

Front view of Haier top-load 5-button PCB (5-Jack) display section with digital screen and control buttons

Haier Top-Load 5-Button PCB (5-Jack)

₹ 2,640

Haier Top-Load 5-Button PCB (5-Jack)

₹ 2,640
  • Controls fixed motor speeds for washing, rinsing, and spinning.
  • Coordinates water filling, draining, and overall cycle management.
  • Processes signals from lid and water level sensors.
  • Connects with the control panel for user program selection.

In a top-load non-inverter washing machine, the PCB acts as the main controller that coordinates all washing functions. It manages the motor at fixed speeds to carry out washing, rinsing, and spinning in sequence. The PCB takes input from the water level and lid sensors to ensure safe and efficient operation, controlling when to start or stop water filling and when to activate the drain pump. It also connects with the control panel, processing user commands for different washing programs and displaying cycle progress. By directing these functions, the PCB keeps the washing machine running in an organized and reliable way.

If the PCB develops problems, several symptoms may appear during washing cycles. The machine may fail to start, stop mid-cycle, or not spin properly. Sometimes, incorrect water filling or unresponsive buttons on the control panel can point to PCB trouble. In certain cases, cycles may take longer than usual or not complete at all. These issues generally occur due to damaged circuits, sensor communication errors, or weakened electronic components. Replacing the PCB usually restores proper timing, water control, and motor performance, allowing the washing machine to return to smooth functioning.
