Back profile of LG inverter top-load 5-button PCB with strong build and display

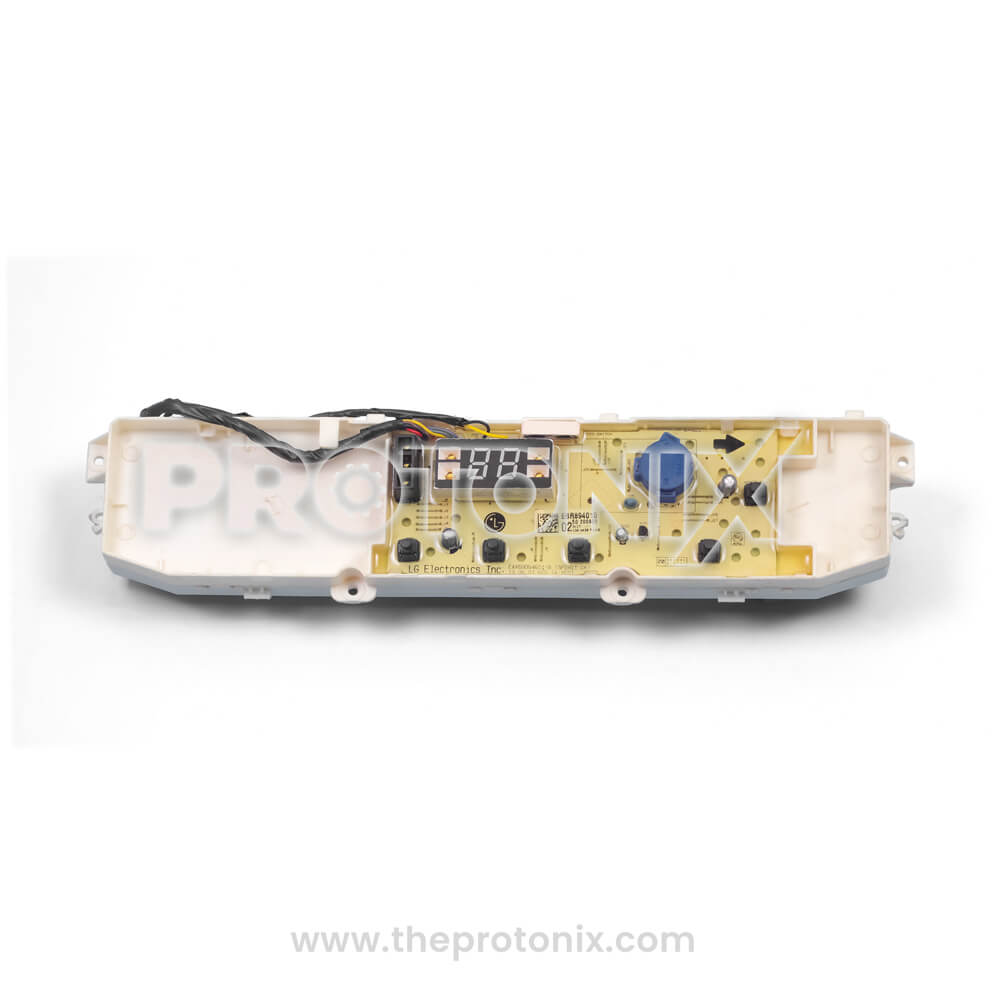

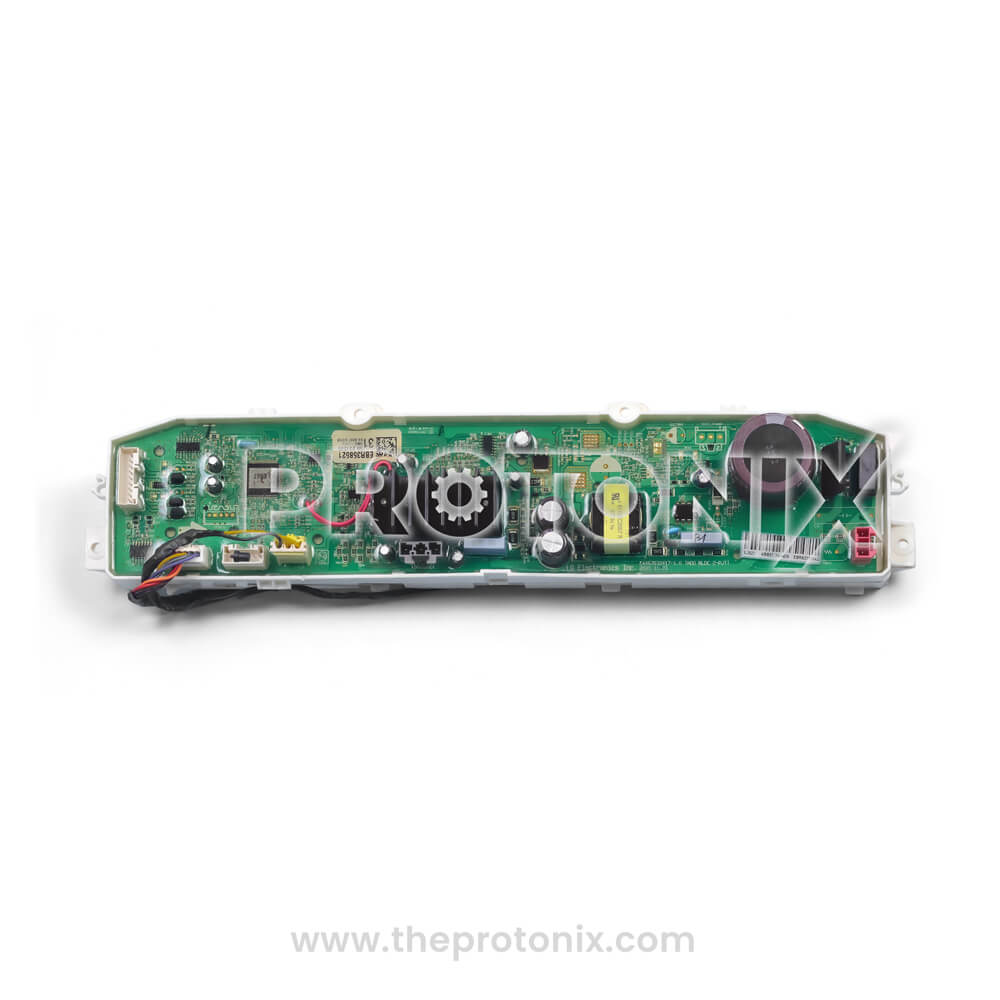

Front view of LG inverter top-load 5-button PCB front side highlighting connectors and relay section

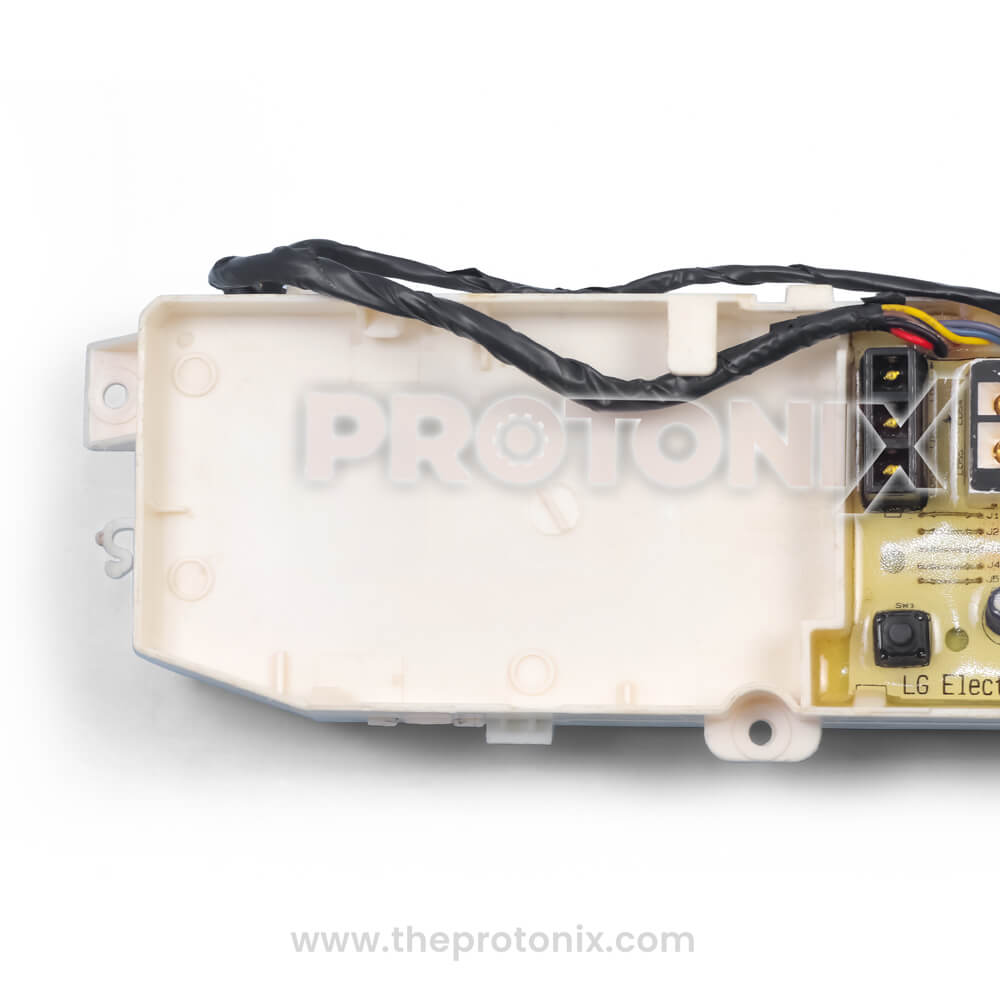

High quality of casing for LG inverter top-load 5-button PCB
LG inverter top-load 5-button PCB with colored wires and LG logo

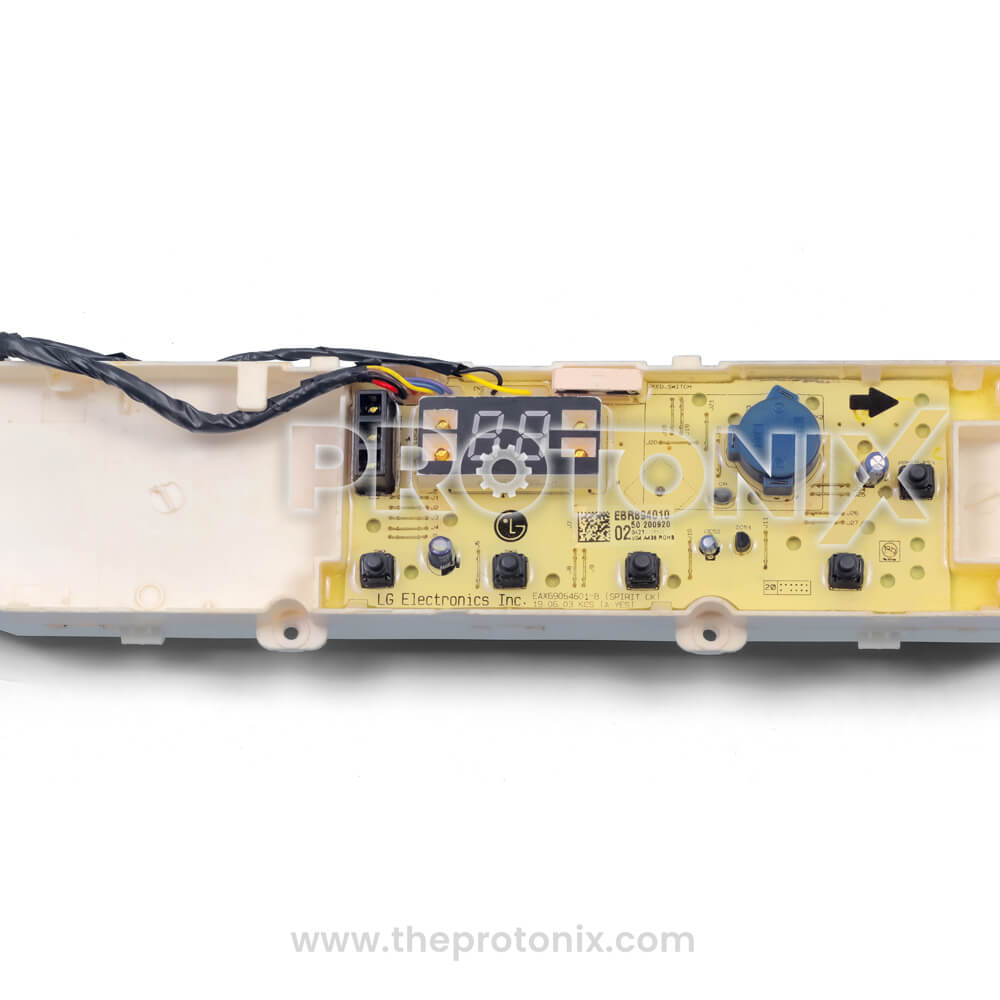

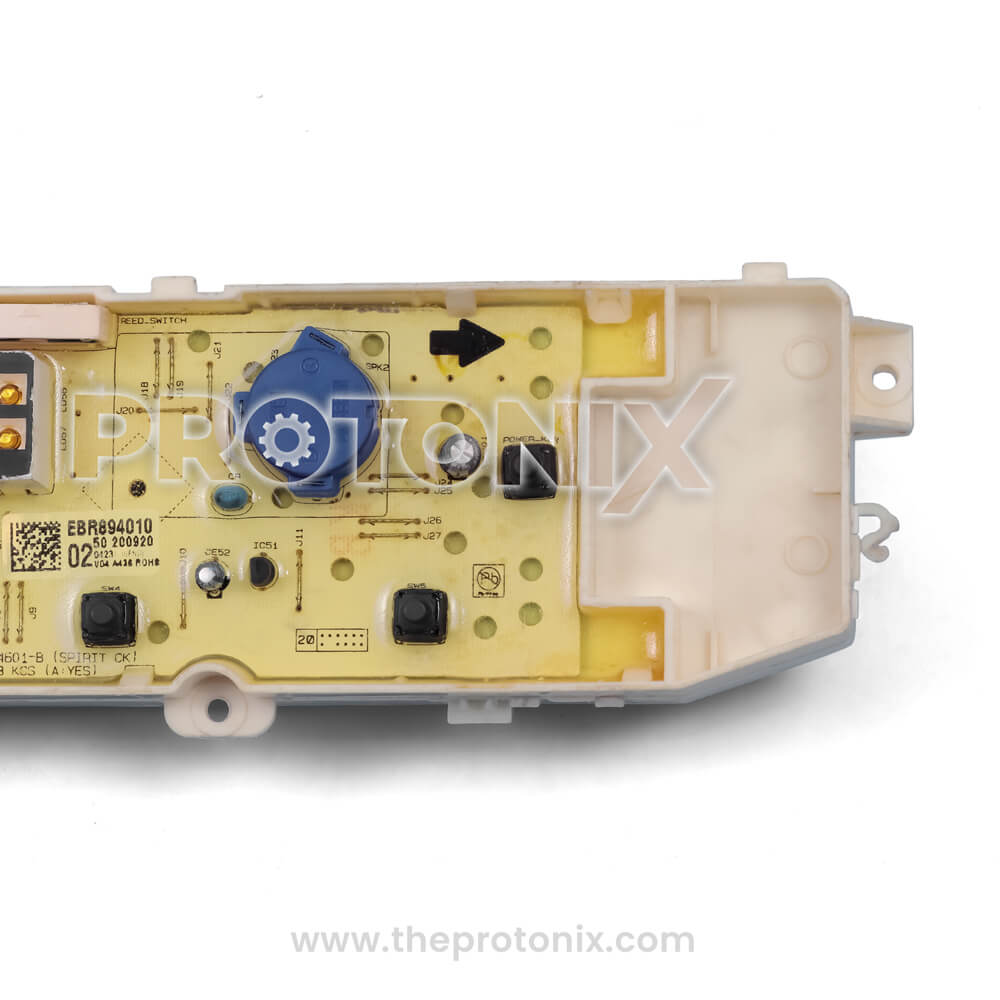

Half close-up of LG inverter top-load 5-button PCB focused section with buttons
LG inverter top-load 5-button PCB made with strong PCB board and quality components

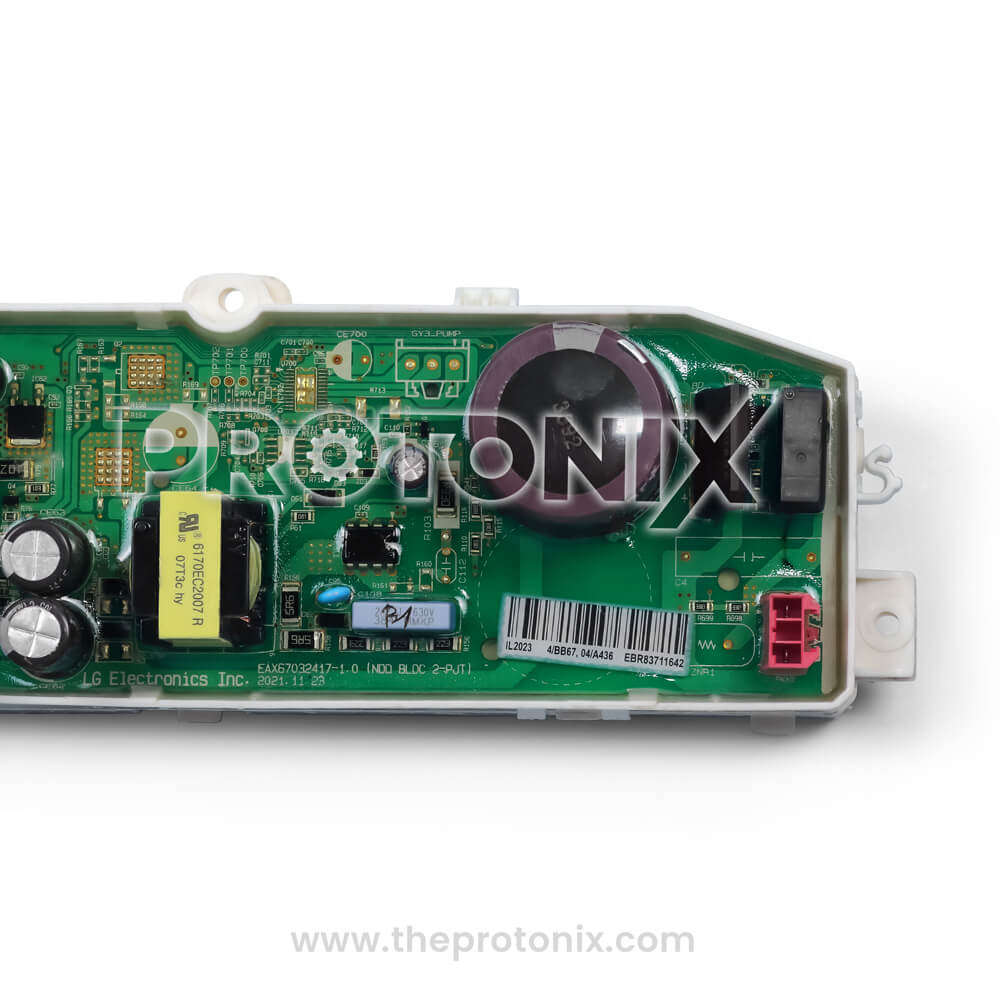

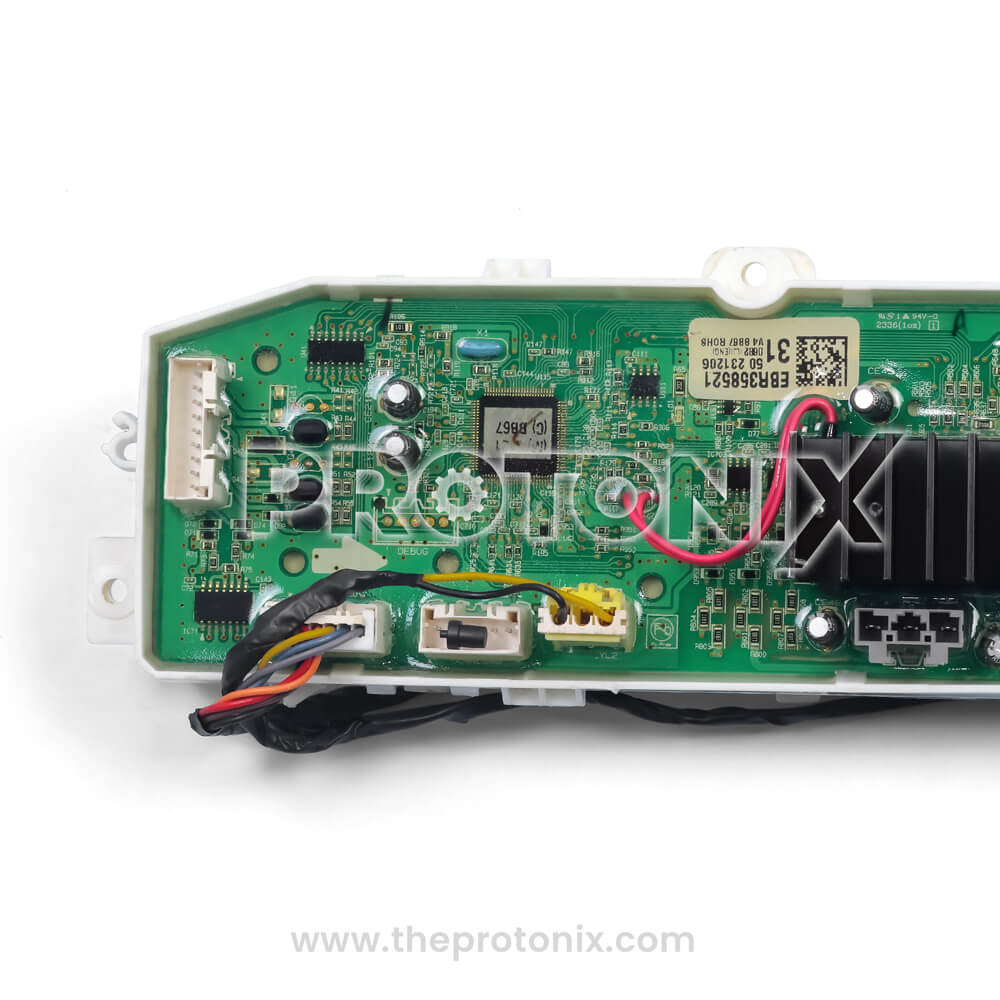

LG inverter top-load 5-button PCB focused section with capacitor, IC, and resistor build

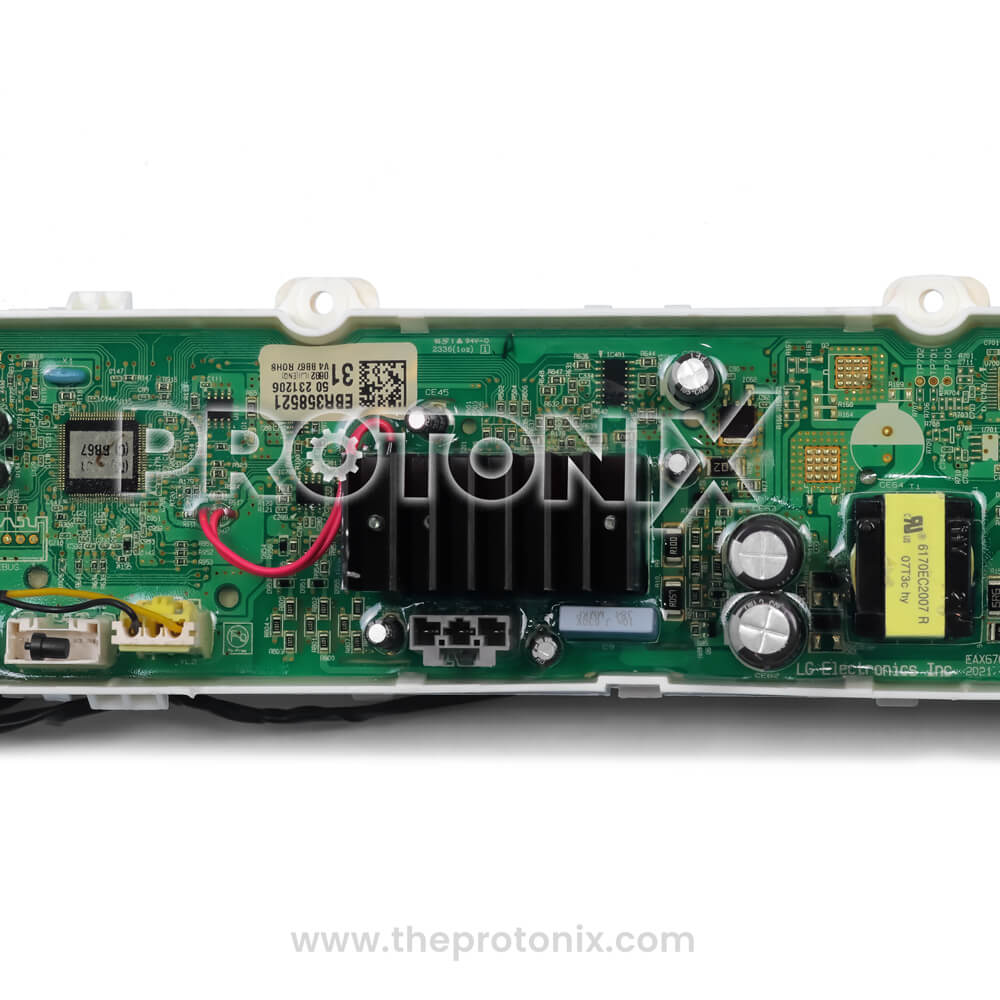

LG inverter top-load 5-button PCB strong build with durable capacitors and mounted relays

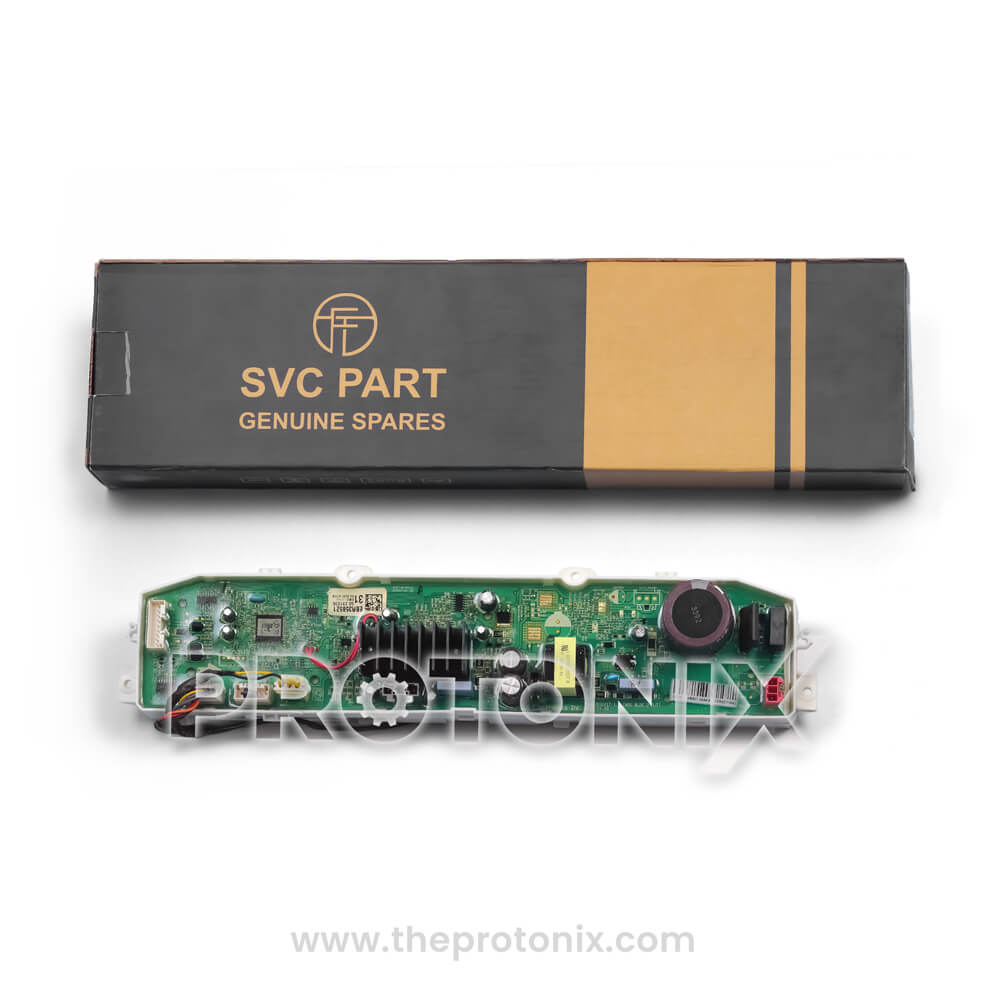

LG inverter top-load 5-button PCB with protective box for safe delivery and handling

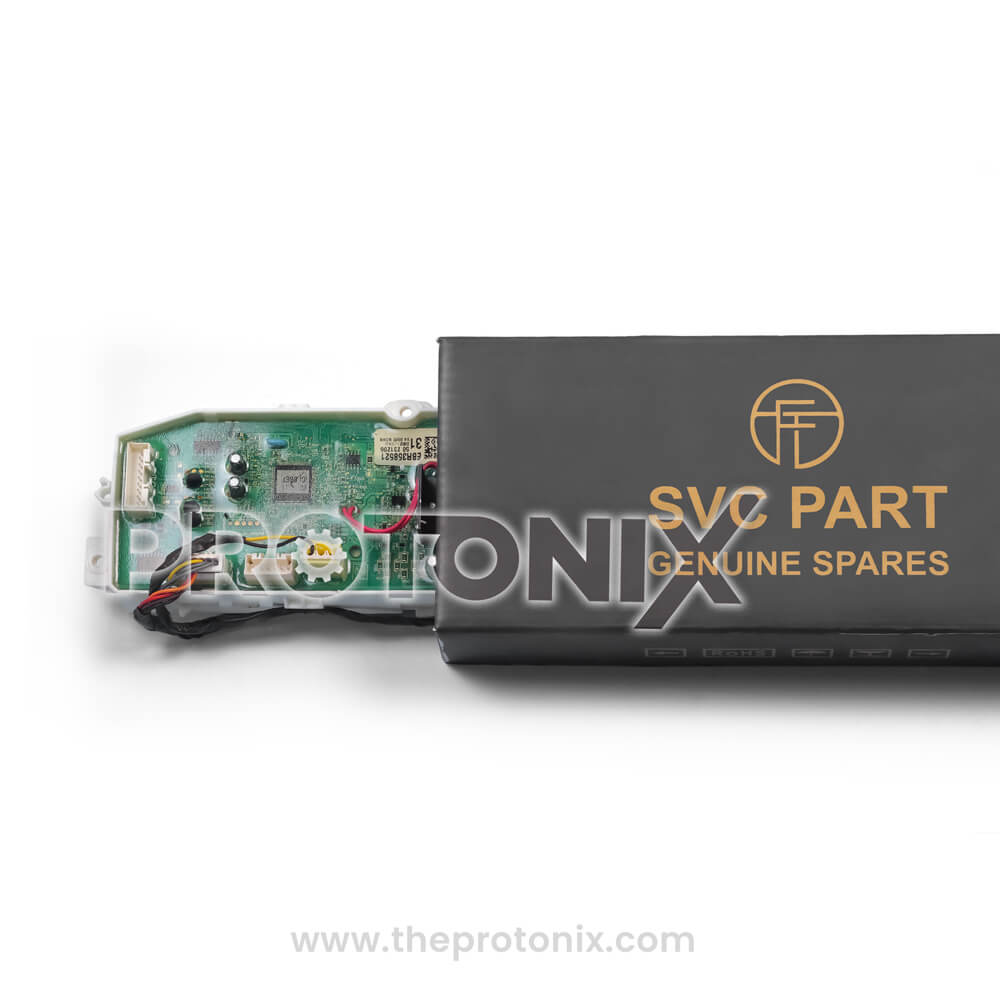

LG inverter top-load 5-button PCB safely packed inside box for secure storage

LG Inverter Top-Load 5-Button PCB

SKU: PRX00540
Availability: In Stock
₹ 3,520
₹ 3,520

M.R.P. Inclusive of all taxes

Features & Compatibility​:

Compatible Brands: LG
Origin: OEM
Product Type: PCBs
Appliance Type: Top Load Washing Machine, Inverter Washing Machine
COD Available On Orders Over ₹500
Free Delivery Over ₹3000 Orders
Product Video Before Item Dispatch*
100% Genuine
Secure Checkout
#1 Customer Support
Fastest Delivery
Premium Quality

Have Questions or Need Help?

We are trusted dealer of home appliances and electronic spare parts, offering only premium-quality, genuine products. Your satisfaction is our priority — thank you for choosing us!

Back profile of LG inverter top-load 5-button PCB with strong build and display

LG Inverter Top-Load 5-Button PCB

₹ 3,520

LG Inverter Top-Load 5-Button PCB

₹ 3,520
  • Controls washing, rinsing, and spinning cycles through variable signals.
  • Processes commands from control panel and onboard sensors.
  • Coordinates motor direction, load sensing, and drum balance checks.
  • Interfaces with user panel for cycle selection and system feedback.

A PCB used in inverter top-load washing machines governs the overall automation by processing dynamic input from sensors, load detectors, and control buttons. It communicates with the inverter drive to modulate motor speed as per cycle demands—enabling efficient wash performance with variable spin rates. Through logic-based sequencing, it manages water valves, direction changes, and cycle transitions while adjusting settings based on drum load, water level, and temperature readings.

Damage from prolonged power surges, component wear, or moisture can disrupt the logic circuits, leading to problems such as erratic spin speeds, incomplete cycles, or the machine failing to respond to input. Visible symptoms may include blinking indicators, long pauses between stages, or a non-functional display panel. These issues often suggest malfunction in the inverter control section or broken signal paths, making accurate diagnosis and PCB replacement essential for restoring proper machine function.
