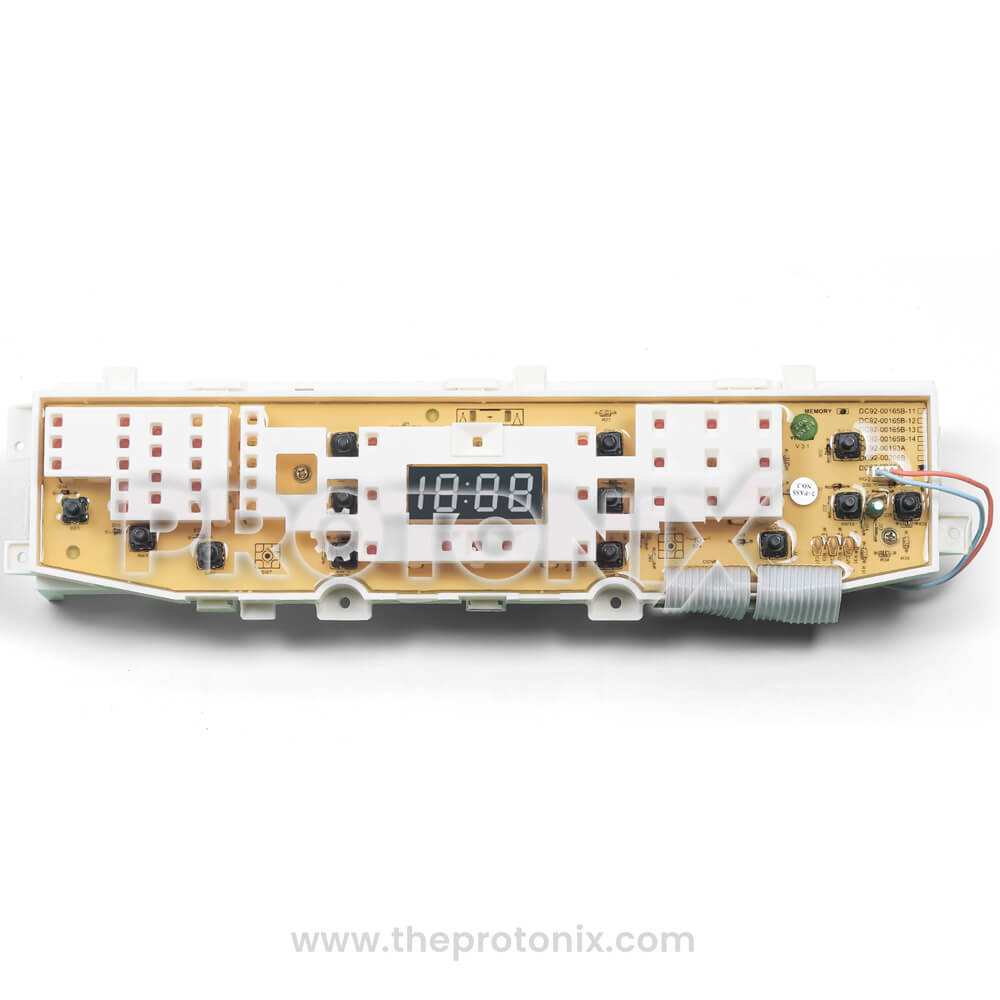

Front view of Samsung top-load 13-button PCB DC92-00751B showing complete control panel and connectors

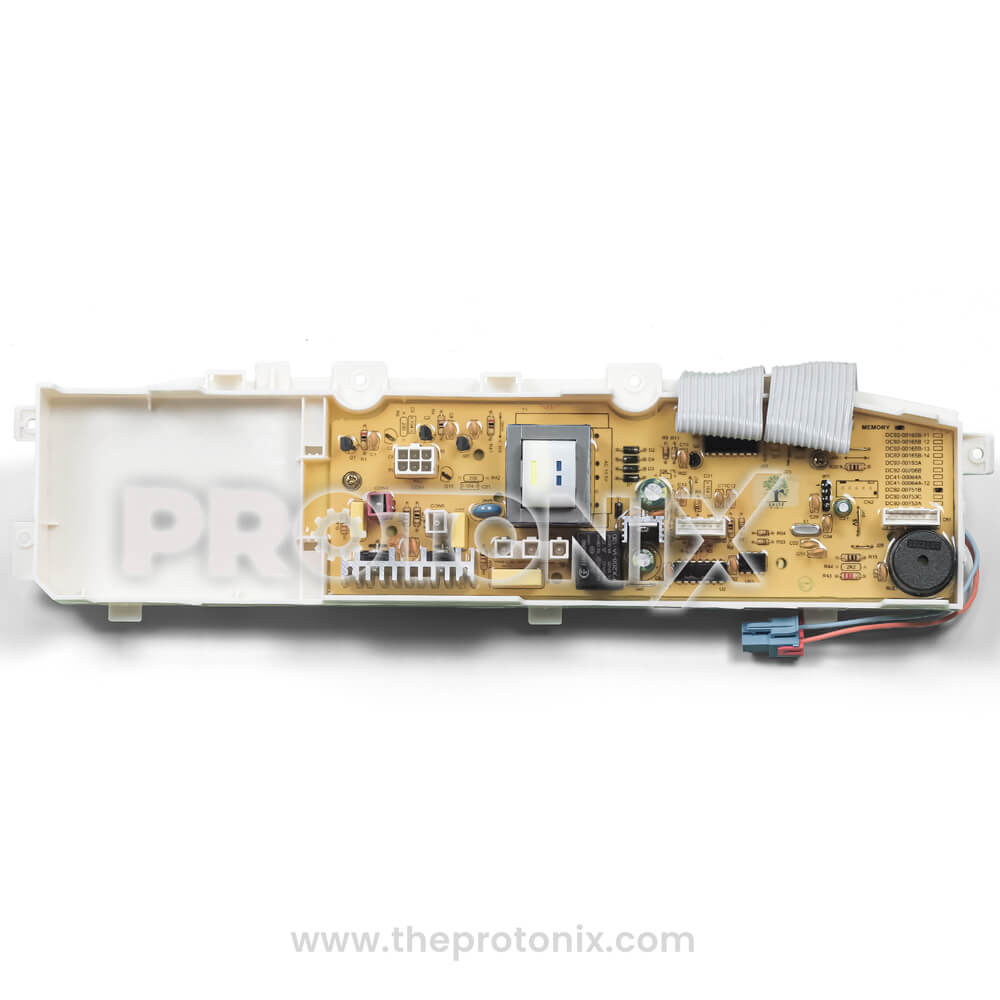

Back view of Samsung top-load 13-button PCB DC92-00751B with visible solder points and electronic tracks

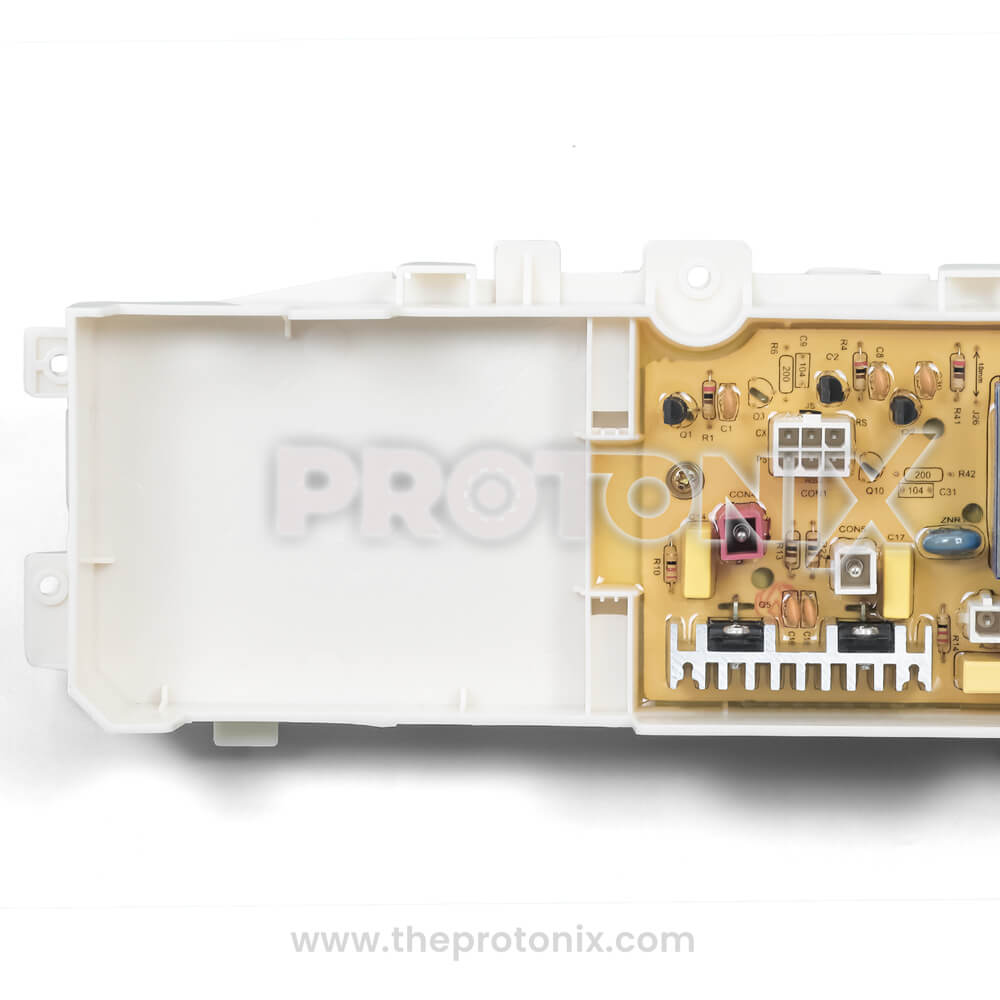

Side profile of Samsung top-load 13-button PCB DC92-00751B showing component structure

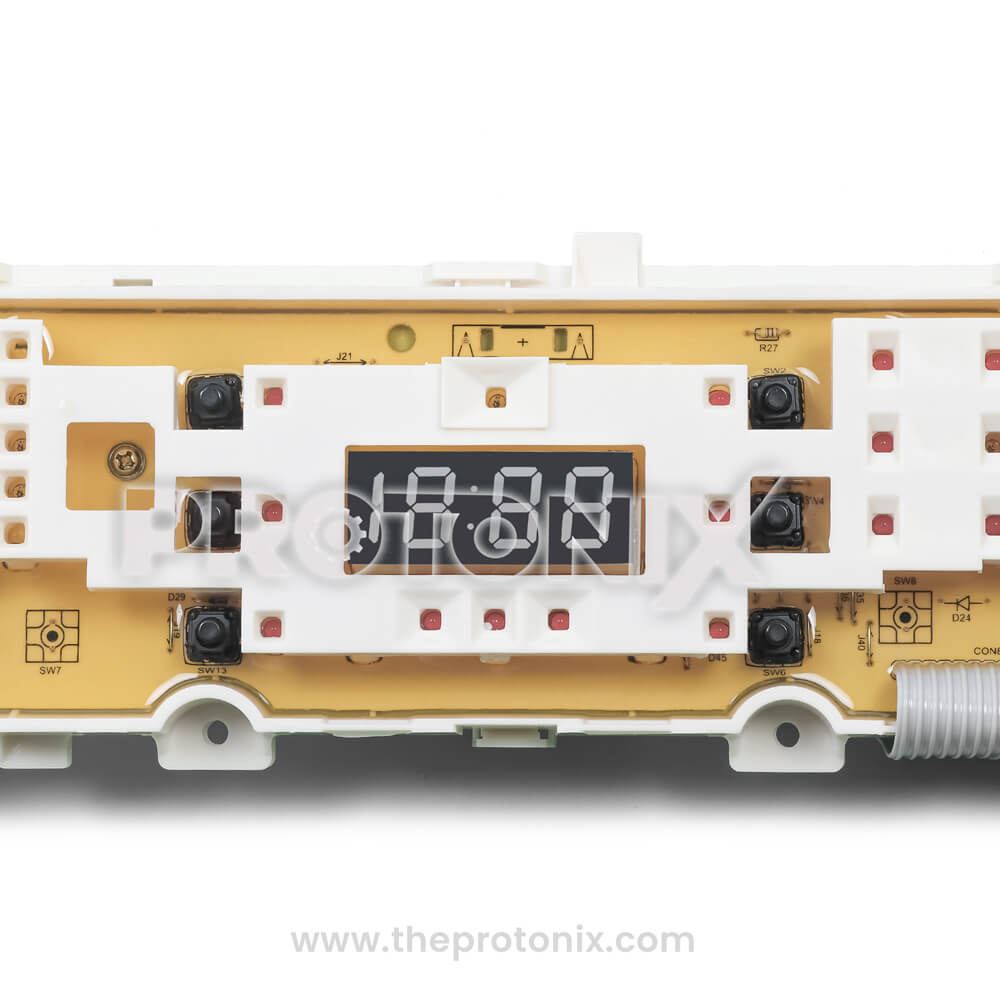

Middle close-up of Samsung top-load 13-button PCB DC92-00751B with display
Samsung top-load 13-button PCB DC92-00751B designed for washing machine control and operation
Samsung top-load 13-button PCB DC92-00751B placed on white background showing clean front layout

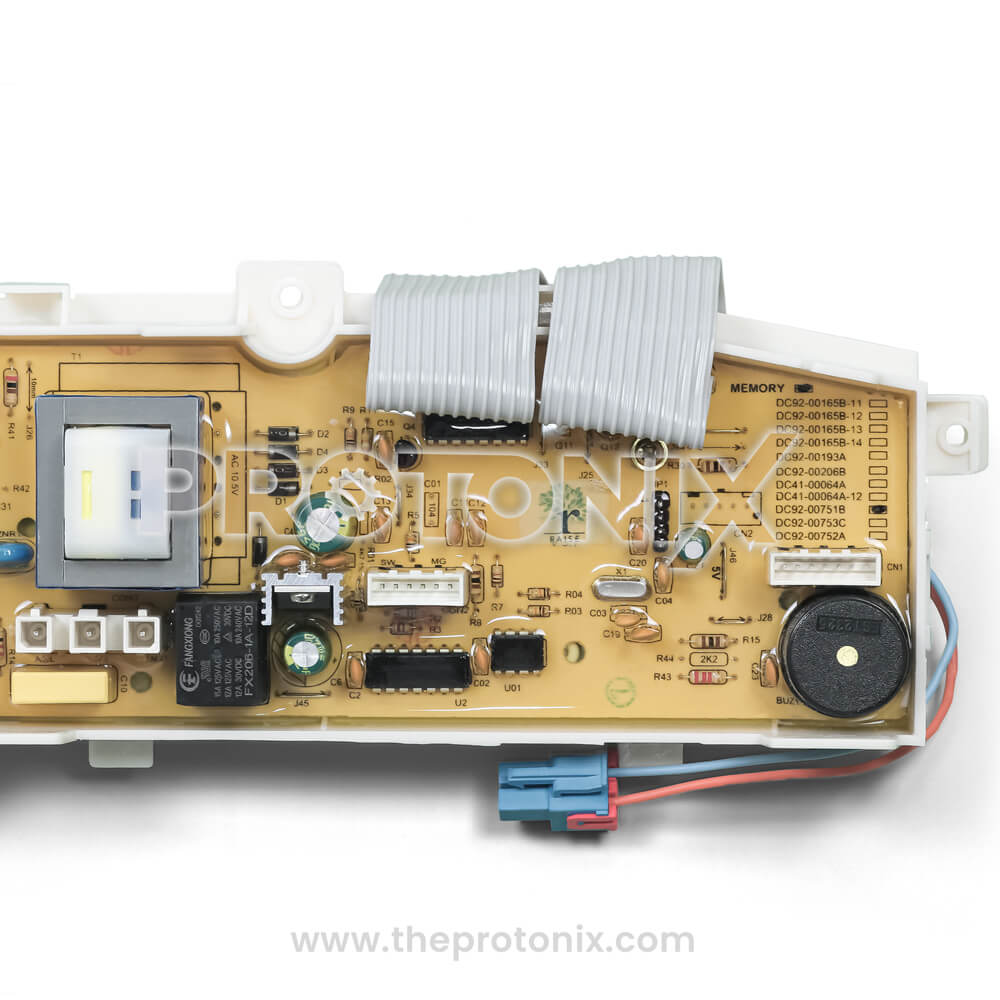

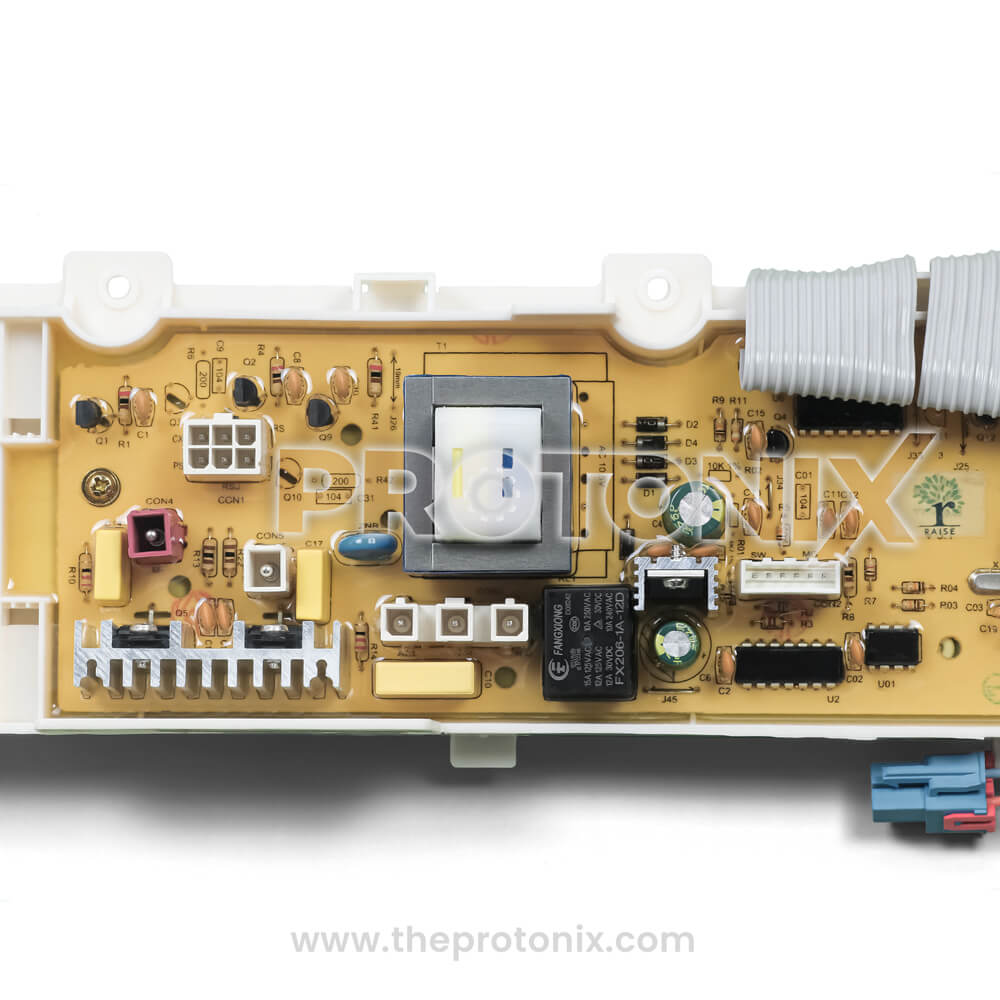

Top close-up of Samsung top-load 13-button PCB DC92-00751B highlighting connector area

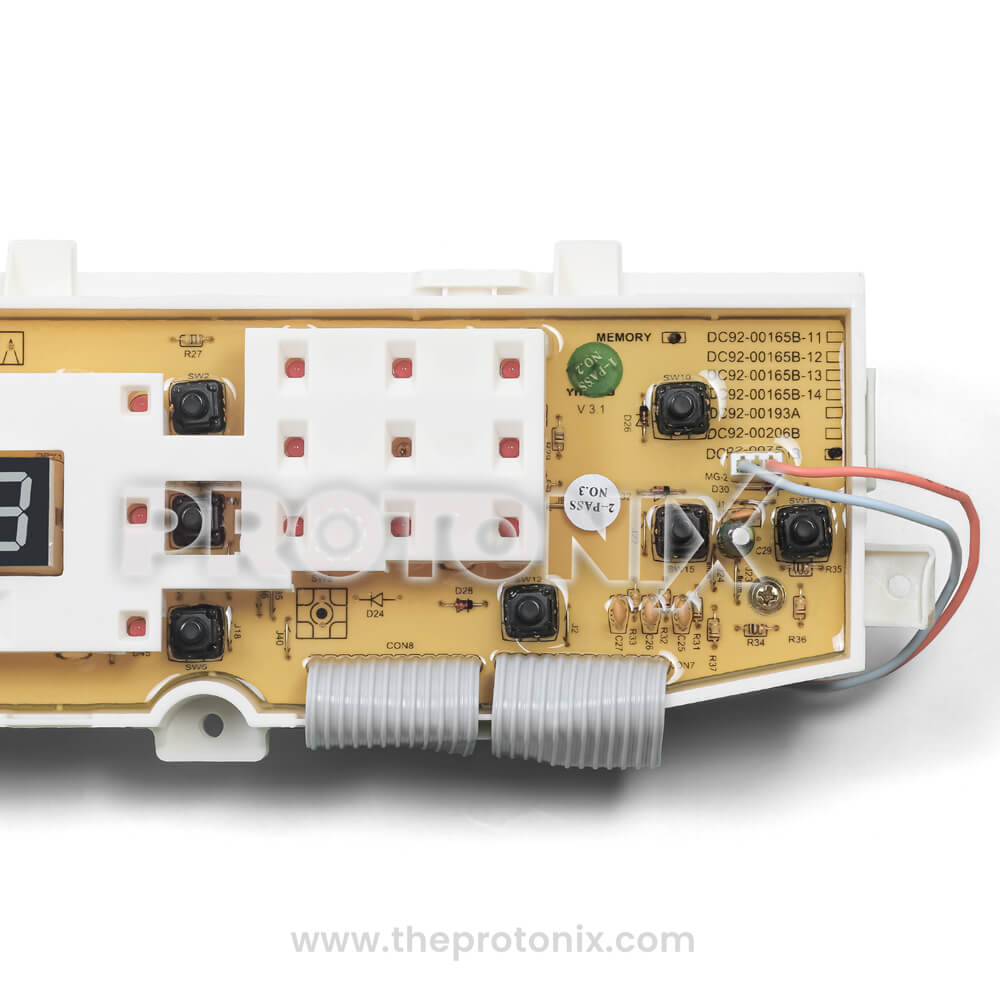

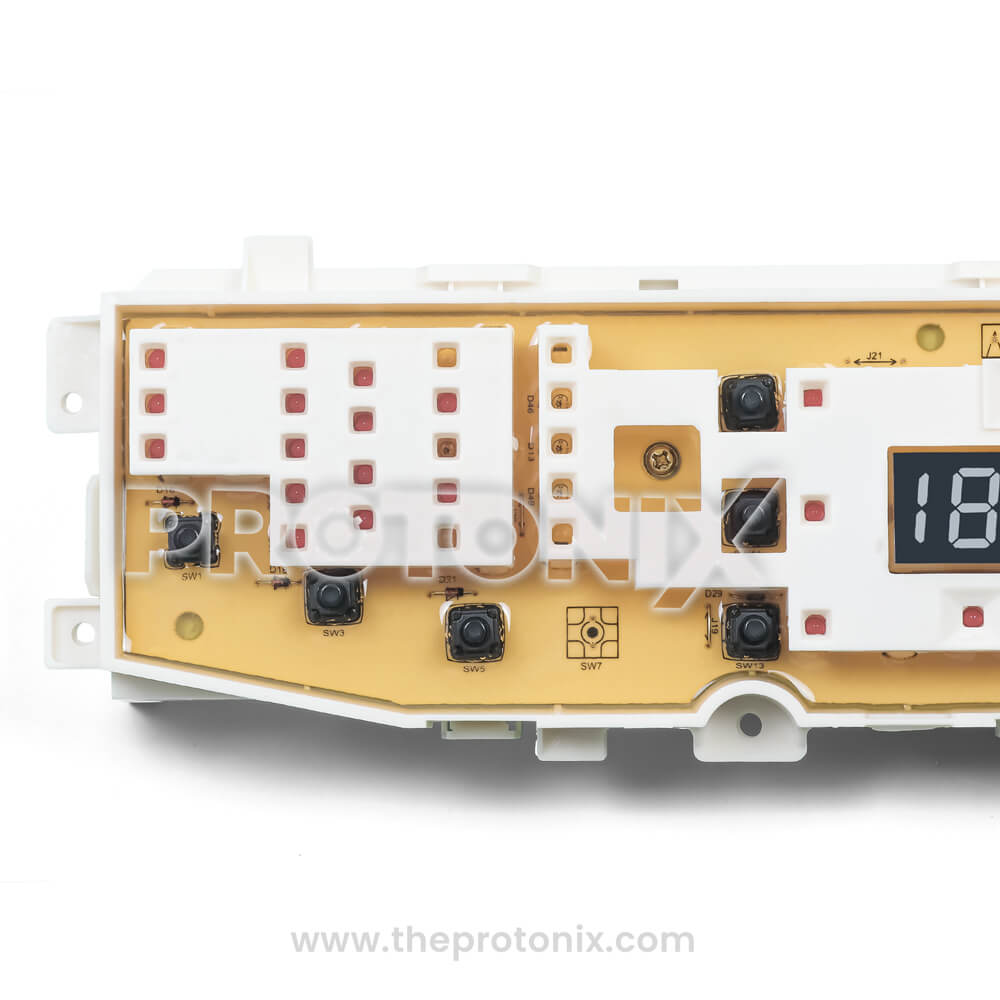

Half close-up of Samsung top-load 13-button PCB DC92-00751B showing board design and button arrangement

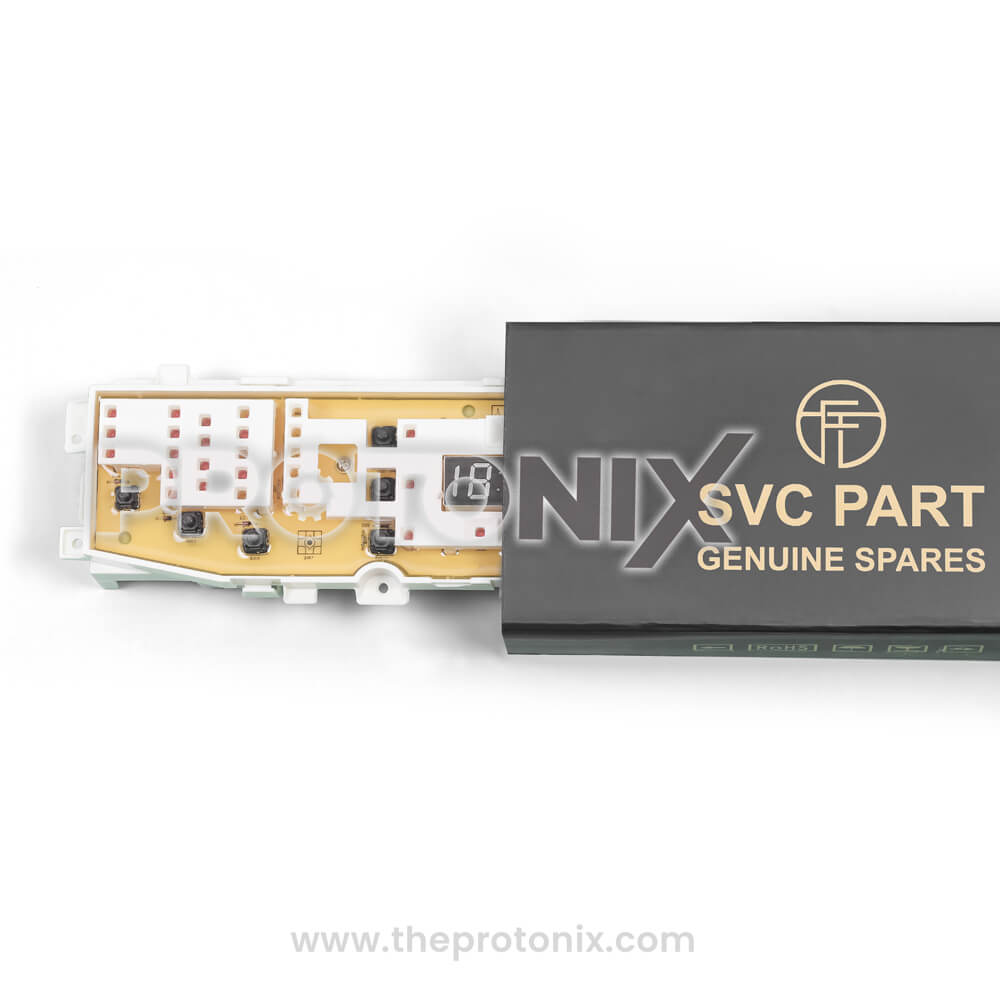

Samsung top-load 13-button PCB DC92-00751B with strong protective box for safe transport and shipping

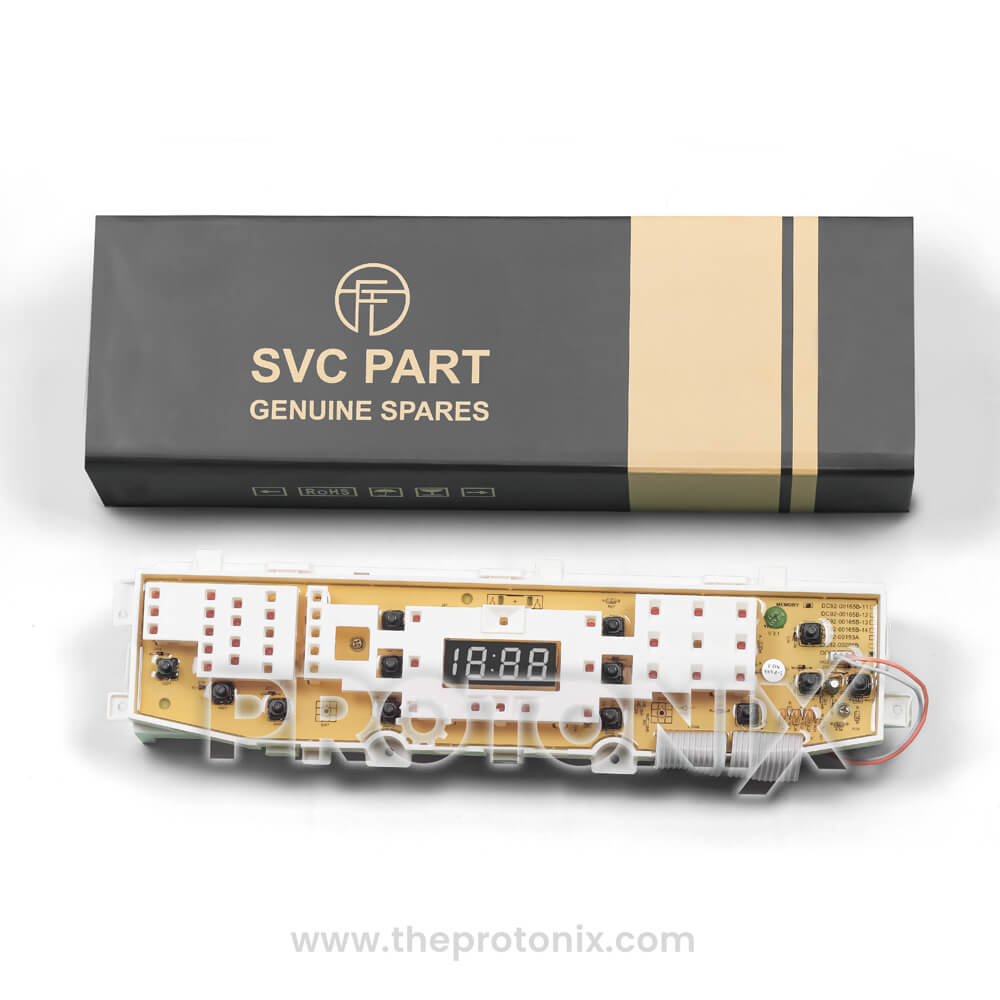

Samsung top-load 13-button PCB DC92-00751B inside box with secure protective packing and product label

Samsung Top-Load 13-Button PCB (DC92-00751B)

SKU: PRX00502
Availability: In Stock
₹ 2,445
₹ 2,445

M.R.P. Inclusive of all taxes

Features & Compatibility​:

Compatible Brands: Samsung
Origin: Imported
Product Type: PCBs
Appliance Type: Top Load Washing Machine
COD Available On Orders Over ₹500
Free Delivery Over ₹3000 Orders
Product Video Before Item Dispatch*
100% Genuine
Secure Checkout
#1 Customer Support
Fastest Delivery
Premium Quality

Have Questions or Need Help?

We are trusted dealer of home appliances and electronic spare parts, offering only premium-quality, genuine products. Your satisfaction is our priority — thank you for choosing us!

Front view of Samsung top-load 13-button PCB DC92-00751B showing complete control panel and connectors

Samsung Top-Load 13-Button PCB (DC92-00751B)

₹ 2,445

Samsung Top-Load 13-Button PCB (DC92-00751B)

₹ 2,445
  • Operates based on fixed relay logic for each wash stage.
  • Ensures automatic progression of washing sequence without manual input.
  • Regulates timing and power to motor, drain, and inlet valve.
  • Regulates timing, water level, and directional motor movement.

Printed Circuit Boards (PCBs) used in non-inverter top-load fully automatic washing machines serve as the core control system that automates each stage of the wash process. These boards relay commands to various components like the fixed-speed motor, drain pump, and water inlet valve. Functioning without frequency modulation, the board uses pre-programmed relay switching to manage direction control, soak periods, and spin timing. Through sensor feedback, the PCB ensures the correct amount of water is filled and released at the right time, allowing the machine to function seamlessly.

However, over time, these boards are vulnerable to damage caused by voltage spikes, overheating of relays, moisture buildup, or even insect infestation in some environments. A faulty PCB may lead to cycle interruptions, buttons not responding, or continuous water filling without stopping. In other cases, the drum may fail to rotate or remain stuck in one mode. Electrical arcing, broken solder points, or burned relay coils are common internal faults. When the PCB fails, overall system logic is lost, making cycle progression impossible until it's replaced.
